Wireless Microphone

Mipro MR-812 (Limited Stock)

Choose Options

Price
Receiver + 2 mics RM 1,600 each

  • EIA Standard metal housings improve heat dissipation and shielding from spurious interference.
  • 1/2U dual-channel diversity receiver.
  • PLL synthesized fixed frequency circuit for stability and effortless frequency setup.
  • Advanced diversity technology ensures optimal reception range and eliminates signal drop-outs.
  • RF and audio level indicators.
  • Output level is accurately pre-adjusted to equal to the microphone capsule sensitivity and ensures optimal performance.
  • Adjustable ‘SQ’ for increased or decreased sensitivity level for increased reception range or interference management.
  • Industry’s only RF interference warning indicator for SQ adjustment.
  • Up to 24 compatible channels can be used simultaneously at the same venue (country dependent).
  • New MH-80 handheld transmitter features sturdy housing, high-efficiency transmitting circuit, and brilliant sound quality.
  • Quick to install and easy to operate with high reliability and affordability.
  • Ideal for entry-level stage and PA applications.

    • Datasheet MR-812 Datasheet [PDF]
    Channel Dual
    Chassis  EIA-Standard 19 " 1/2U
    Receiving Mode Diversity
    Frequency Range 480~934 MHz (country dependent)
    Antenna Rear Panel. Detachable.
    Oscillation Mode PLL Synthesized fixed-frequency; Frequency Stability ≦±0.005% (-10~+60℃)
    Sensitivity 10 dBμV, at S/N > 80 dB
    S/N Ratio > 106 dB(A)
    T.H.D. < 0.5% @ 1 kHz
    Frequency Response 50 Hz~18 kHz
    Squelch “NoiseLock” squelch circuit
    Audio Output Adjustment Output level accurately pre-adjusted to equal the microphone capsule sensitivity
    Max. Output Level 3-Level Switch: +10 dB / 0 dB / -6 dB
    Power Supply External AC Adapter, 12~15V DC, 1A;
    Power Consumption:6W
    Dimensions (W × H × D) 210 × 44 × 180 mm / 8.3 × 1.7 × 7.1 "
    Weight Approx. 0.95 kg / 2.1 lbs
    Transmitter MH-80 Handheld, MT-801a Bodypack
    Notes Refer to actual product in the event of product description discrepancy.
    Frequency range and maximum deviation comply with the regulations of different countries.
    Price

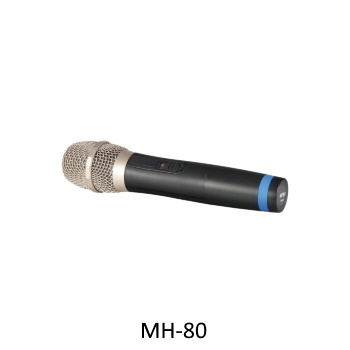

    MH-80 UHF Handheld Mic RM 900

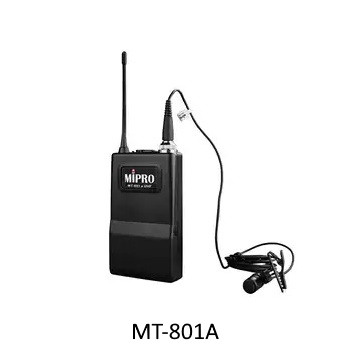

    MT-801A UHF Bodypack Clip Mic RM 1,000
    MU-53HN-XLR Headworn Mic RM 760
    AT-20 Antenna RM 56
    Power Adapter RM 100
