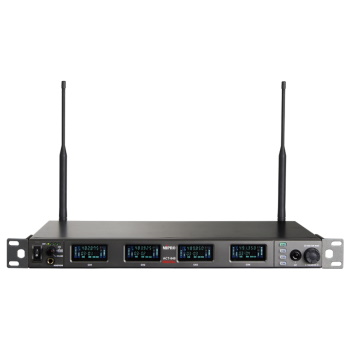

• Share the EIA standard metal chassis, and a newly designed VFD screen, monitor headphone jack, rotary control knob and buttons are equipped on the control panel which is consistent with the same operations and display modes of the other series. The analog audio output, AES/EBU digital output, Dante or AVB network interface output and MIPRO RCS2.Net interface connectors on the rear panel.
• Exclusive 72 MHz wideband digital diversity circuit greatly improves the reception range and increases interference-free compatible channels. Full-range sound quality is not affected by the strength of RF signals or operating distance.
• Proprietary 256-bit encryption prevents eavesdropping.
• MIPRO Auto Scan and ACT™ function provide the transmitter’s frequency with precise and rapid sync to the receiver.
• There are 7 preset groups with a total of 224 pre-saved channels. The user-defined group allows users to choose and save up to 16 channels from 2,881 available frequencies.
• Each channel has separate audio output and 3 switchable levels, and the preset output level equals the sensitivity of the microphone capsule at 0 dB. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
• The DSP audio processor and D/A converter make the sound quality almost the same as the wired microphone.
• Equips the Dante or AVB digital network interface. Optional MIPRO RCS2.Net software connects to MIPRO DVU drive connector and allows real-time network remote-controlling and monitoring up to 64 channels. Additional new FSA software connects to MIPRO DVU drive connector and allows users to calculate interference-free compatible channels and link to the network.
• Designed and made in Taiwan ensures high quality and value.
|
Datasheet
|
ACT-848 Datasheet [PDF]
|
| Channel |
Quad |
| Chassis |
EIA-Standard 19″ 1U metal chassis |
| Monitor Output |
Monitor headphone jack with volume control |
| Network Interface |
Dante or AVB (optional) |
| Display |
A newly designed color VFD |
| Frequency Range |
UHF 480 ~ 934 MHz (country dependent) |
| Bandwidth |
72 MHz |
| Receiving Mode |
Digital diversity receiving |
| Sensitivity |
12 dBμV @ S/N > 100 dB |
| Audio Processing |
DSP audio processor eliminates the compander noise that exists in analog systems. |
| Frequency Response |
20 Hz ~ 20 kHz (< -2 dB) |
| Dynamic Range |
> 120 dBA |
| Latency |
2.9 ms |
| Audio Output |
AES / EBU digital interface. Analog balanced output, +16 dB / 0dB / -6 dB switchable. |
| EQ |
Presets 10 digital audio and anti-feedback EQ |
| PC Interface |
USB interface. MIPRO ACT-BUS for remote-control of up to 64 channels. FSA compatible channels calculator software allows users to manually set compatible channels. (Sold separately) |
| Antenna |
Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems. |
| Power Supply |
External 100~240V AC switching power supply |
| Dimensions |
420 × 44 × 219 mm (W × H × D) |
| Weight |
Approx. 2.3 kg |
| Note |
Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries. |
|
|
Price
|
|

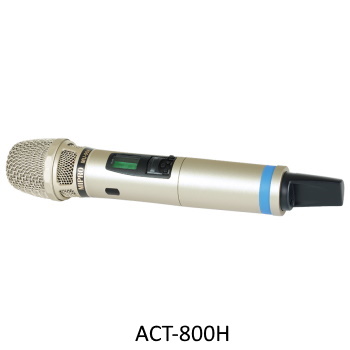

ACT80H UHF Handheld Mic:
|
RM 3,300
|
|

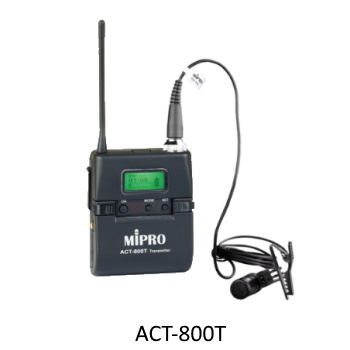

ACT80T UHF Bodypack Clip Mic:
|
RM 3,300
|
|
ACT80HC UHF Rechargeable Handheld Mic:
|
RM 4,000
|
|
ACT80TC UHF Rechargeable Bodypack Clip Mic:
|
RM 4,000
|
|
TA80 Plug-on Transmitter:
|
RM 4,000
|
