Wireless Microphone

Mipro ACT-545

Choose Options

New Version Price
Receiver + ACT-500H * 4 RM 16,000 each
Receiver + ACT-500T * 4 RM 16,000 each
Receiver + (ACT-500H * 2) + (ACT-500T * 2) RM 16,000 each

  • EIA standard metal chassis, with a newly designed LCD, a rotary control knob and buttons equipped on the front panel. The LCD screen automatically shifts colors to identify “Working” or “Standby” mode. An optional Dante network interface is available on ACT-525 and ACT-545.
  • Inherited the most reliable 24 MHz narrowband true diversity receiving circuit from MIPRO typical professional ACT-7 Series, which ensures long-distance and stable reception without signal dropout, greatly decreases intermodulation distortion and increases interference-free compatible channels.
  • Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
  • MIPRO Auto Scan and ACT™ function provides the transmitter’s frequency with precise and rapid sync to the receiver.
  • There are 7 preset groups with a total of 80 pre-saved frequencies. The user-defined group allows users to choose and save up to 16 channels from 961 available frequencies.
  • Each channel has separate audio output and 3 switchable output gains, or mix signals from all channels with just one output jack. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
  • Optional MIPRO RCS2.Net software allows real-time network remote-controlling and monitoring up to 64 channels.
  • Additional FSA compatible channels calculator software allows users to manually set compatible channels of any frequency band.
  • Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
  • External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
  • Pairs with ACT-500H handheld and ACT-500T bodypack transmitter.
  • All are designed and made in Taiwan to ensure high quality and value.
  • Datasheet ACT-545 Datasheet [PDF]
    Channel Quad
    Chassis EIA standard full-rack (19") metal chassis
    Display Two-color backlit LCD
    Frequency Range UHF 480 ~ 934 MHz (country dependent)
    Bandwidth 24MHz
    Receiving Mode True diversity receiving
    Sensitivity 6 dBμV @ S/N > 80 dB
    Frequency Response 50 Hz – 18 kHz
    Dynamic Range > 111 dBA
    Audio Output Balanced: +16dB / 0dB/ -6dB
    Unbalanced: +10dB / 0dB/ -6dB
    Network Interface Optional Dante
    PC Interface USB interface. MIPRO ACT-BUS for remote-control of up to 64 channels. FSA compatible channels calculator software allows users to manually set compatible channels. (Sold separately)
    Antenna 50Ω TNC female connector provides bias for the MIPRO antenna systems
    Power Supply DC 12 – 15 V. External AC 100 – 240 V switching power supply
    Dimensions 420 × 44 × 219 mm (W × H × D)
    Weight Approx. 2.4 kg
    Note Refer to actual product in the event of product discrepancy.
    Price

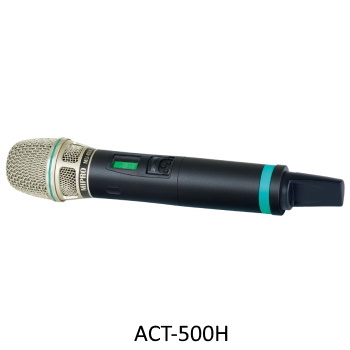

    ACT-500H UHF Handheld Mic RM 2,400

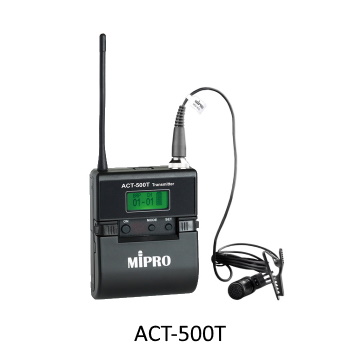

    ACT-500T UHF Bodypack Clip Mic RM 2,400
    MU-53HN-XLR Headworn Mic RM 760
    AT-20 Antenna RM 160
    Power Adapter RM 600
