• The single-channel receiver in 1/2U metal chassis has a built-in high-efficiency antenna in the front panel.
• MIPRO’s unique control panel equips a graphic OLED, providing a larger field of view without a blind angle.
• Stable digital modulation circuitry. 12 channels of interference-free operation are located in a single frequency band.
• Dual tuner true diversity receiving ensures long-distance reception and eliminates signal drop-out.
• Effectively avoids the RF interference from UHF communication products.
|
Datasheet
|
ACT-2401 Datasheet [PDF]
|
| Channel |
Single |
| Chassis |
EIA Standard 1/2U metal case |
| Antenna |
Built-in, front panel |
| Frequency Range |
ISM 2.4 GHz band (2,400~2,483.5 MHz) |
| Preset Frequencies |
12 |
| Receiving Mode |
Dual-tuner true diversity receiving. ACT Sync channel set-up |
| Sample Rate |
24-bit / 44.1 kHz |
| Frequency Response |
20 Hz ~ 20 kHz |
| Latency |
< 4.0 ms |
| Dynamic Range |
> 117 dBA |
| Output Connectors |
Balanced XLR & Unbalanced Ø 6.3 mm, -10 ~ +20 dB adjustable range. |
| Power Supply |
External 100~240V AC switching power supply |
| Dimensions |
210 × 44 × 162 mm (W×H×D) |
| Weight |
Approx. 0.7kg |
| Note |
Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries. |
|
|
Price
|
|

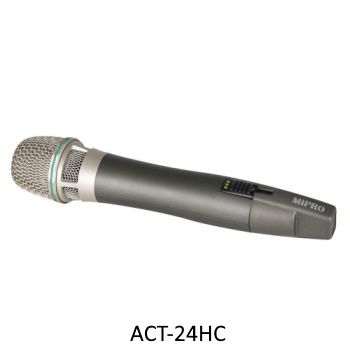

ACT24HC Rechargeable UHF Handheld Mic:
|
RM 1,400
|
|

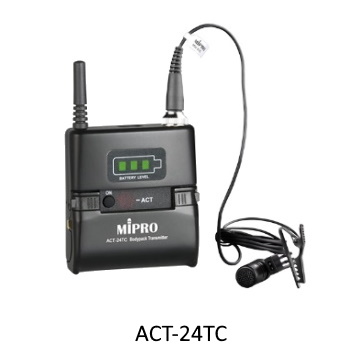

ACT24TC Rechargeable UHF Bodypack Clip Mic:
|
RM 1,400
|
|
Switching Adapter SYS1089-1512-T3:
|
RM 220
|
