Wireless Microphone

Mipro ACT-828

Choose Options

Price
Receiver + ACT-80H * 2 RM 12,000 each
Receiver + ACT-80T * 2 RM 12,000 each
Receiver + ACT-80H + ACT-80T RM 12,000 each
Price
Receiver + ACT-80HC * 2 RM 14,000 each
Receiver + ACT-80TC * 2 RM 14,000 each
Receiver + ACT-80HC + ACT-80TC RM 14,000 each
Price
Receiver + TA-80 RM 13,000 each

  • Each receiver has the same size of EIA standard 1U metal case as other series for excellent heat dissipation and RF shielding, and a newly designed VFD screen, headphone monitor jack, buttons and a rotary control knob on the front panel, and AES/EBU digital output and Dante interface on the rear panel. Both receivers also have the same operating method and display mode as all other series models.
  • The RF receiving circuit is upgraded to 72 MHz wideband design, which is the same as that of the ACT-7 Series, and greatly increased stable receiving range of signal dropout-free and interference-free compatible channels.
  • Auto Scan function allows quick search for an interference-free working channel. World’s first ACT™ function provides the transmitter’s frequency with automatic, precise and rapid sync to the receiver.
  • Presets one group of 16 compatible interference-free channels without any limited conditions, one group of 48 compatible interference-free channels and one user-defined group allows 16 channels be selected and saved from 2,881 frequencies.
  • Antenna connectors provide boosters bias voltage for MIPRO antenna systems to enhance reception signal quality.
  • Each channel has separate AF signal output. Default output level 0 dB is equal to the microphone capsule’s sensitivity. The switchable three output levels ensure the microphone to operate within proper sensitivity and dynamic range.
  • Proprietary DSP audio processor and A/D converter provides a true dynamic range of > 115 dBA, T.H.D. < 0.03% and < 2.7 ms latency. Its sound quality is almost same as the wired system.
  • Proprietary 256-bit encryption prevents unauthorized listening. The built-in digital SmartEQ™ microphone capsule equalization presets suit artists’ preferences. The built-in digital anti-feedback SmartEQ™ presets minimize feedback of the microphones.
  • Optional MIPRO RCS2.Net software allows real-time network remote-controlling and monitoring of 64 systems. Additional FSA compatible channels calculator software allows users to manually set compatible channels of any frequency band.
  • Dante interface allows multiple channels of audio signal be transmitted via a single network cable.
  • External 100~240V AC switching power supply ensures system’s stable performance.
  • Design and made in Taiwan ensures high quality and value.

    • Datasheet ACT-828 Datasheet [PDF]
    Channel Dual
    Chassis EIA-Standard 19″ 1U metal case
    Receiving Mode New Digital diversity
    Frequency Range UHF 480 ~ 934 MHz (country dependent)
    Bandwidth 72MHz
    Sensitivity 12 dBµV
    Spurious Rejection > 85 dB
    Audio Compression Proprietary DSP audio processor eliminates the compander noise exists in analog systems.
    Audio Sampling 24-bit / 44.1 kHz
    Frequency Response 20 Hz ~ 20 kHz (< -2 dB)
    Dynamic Range > 115 dB (A)
    Latency 2.7 ms
    Analog Audio Output Balanced, +16 dB / 0dB / -6 dB switchable
    Digital Audio Output AES / EBU digital interface
    EQ Presets 10 digital audio EQ and anti-feedback EQ
    Monitor Output Headphone monitor connector with volume control
    Dante Interface Optional
    PC Interface USB interface. MIPRO ACT-BUS for remote-control of up to 64 channels. FSA compatible channels calculator software allows users to manually set compatible channels.
    Antenna Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems.
    Power Supply External 100~240V AC switching power supply
    Display A color VFD
    Dimensions 420 × 44 × 230 mm (W × H × D)
    Net Weight Approx. 2.1 kg
    Note Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries.
    Price

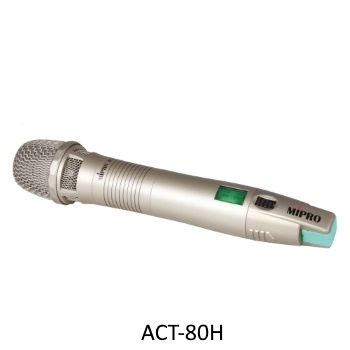

    ACT-80H UHF Handheld Mic RM 3,700

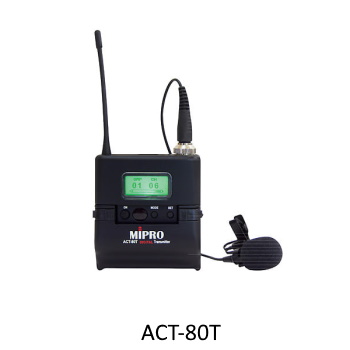

    ACT-80T UHF Bodypack Clip Mic RM 3,700

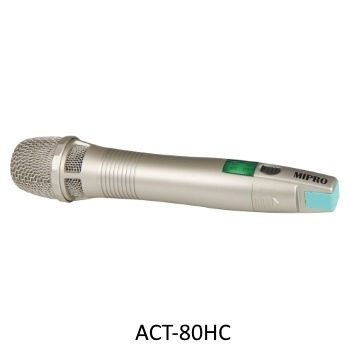

    ACT-80HC UHF Handheld Mic RM 3,800

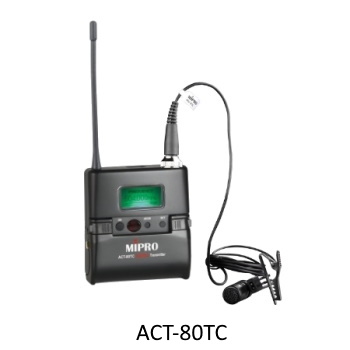

    ACT-80TC UHF Bodypack Clip Mic RM 3,800

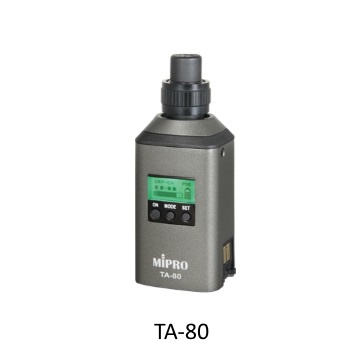

    TA-80 Digital miniature wireless plug-on transmitter RM 5,000
    MU-53HN-XLR Headworn Mic RM 760
    AT-20 Antenna RM 160
    Power Adapter RM 600
