Wireless Microphone

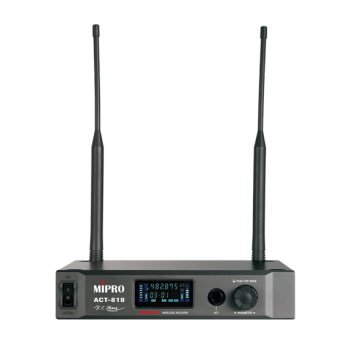

Mipro ACT-818

Choose Options

Price
Receiver + ACT-800H RM 7,500 each
Receiver + ACT-800T RM 7,500 each
Price
Receiver + TA-80 RM 9,000 each

  • EIA standard metal chassis, with a newly designed color VFD, a rotary control knob and buttons equipped on the front panel. The analog audio output, AES/EBU digital output and MIPRO RCS2.Net interface connectors are equipped on the rear panel. ACT-848 or ACT-828 has a monitor headphone jack, and a Dante or AVB network interface output.
  • Exclusive 72 MHz wideband circuit increases interference-free compatible channels.
  • Digital diversity circuit greatly improves the reception range and the full-range sound quality is not affected by the strength of RF signals or operating distance.
  • Proprietary 256-bit encryption prevents eavesdropping.
  • The DSP audio processor and D/A converter make the sound quality almost the same as the wired microphone.
  • MIPRO Auto Scan and ACT™ function provide the transmitter’s frequency with precise and rapid sync to the receiver.
  • There are 7 preset groups with a total of 224 pre-saved channels. The user-defined group allows users to choose and save up to 16 channels from 2,881 available frequencies.
  • Each channel has separate audio output and 3 switchable output gains, and all is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
  • Optional Dante or AVB digital network interface for digital audio output. (for ACT-828 and ACT-848 only)
  • Optional MIPRO RCS2.Net software connects to MIPRO DVU drive connector and allows real-time network remote-controlling and monitoring up to 64 channels. Additional new FSA software connects to MIPRO DVU drive connector and allows users to calculate interference-free compatible channels and link to the network.
  • Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
  • External AC 100 – 240 V switching power supply ensures stable operation of the system even under drastic voltage change.
  • Pairs with ACT-800H handheld and ACT-800T bodypack transmitter.
  • All are designed and made in Taiwan to ensure high quality and value.

    • Datasheet ACT-818 Datasheet [PDF]
    Channel Single
    Chassis EIA standard half-rack (9.5") metal chassis
    Monitor Output N/A
    Network Interface N/A
    Display Color VFD
    Frequency Range UHF 480 – 934 MHz (country dependent)
    Bandwidth 72 MHz
    Receiving Mode Digital diversity receiving
    Sensitivity 12 dBμV @ S/N > 100 dB
    Audio Processing DSP audio processor eliminates the compander noise that exists in analog systems
    Encryption 256-bit
    Frequency Response 20 Hz – 20 kHz（< -2 dB）
    Dynamic Range > 120 dBA
    Latency 2.9 ms
    Audio Output AES/EBU digital interface. Analog balanced output with 3 switchable levels: +16 dB / 0 dB / -6 dB
    EQ Presets 10 digital audio and anti-feedback EQs
    PC Interface USB Interface, MIPRO ACT-BUS for remote-control of up to 64 channels. FSA compatible channels calculator software allows users to manually set compatible channels. (sold separately)
    Antenna Detachable. 50 Ω TNC female connector provides bias for the MIPRO antenna systems
    Power Supply DC 12 – 15 V. External AC 100 – 240 V switching power supply
    Dimensions 210 × 44 × 163 mm (W × H × D)
    Weight Approx. 1.0 kg
    Note Refer to the actual product in the event of product discrepancy
    Price
    ACT-800H UHF Handheld Mic RM 4,000
    ACT-800T UHF Bodypack Clip Mic RM 4,000
    TA-80 Digital miniature wireless plug-on transmitter RM 5,000
    MU-53HN-XLR Headworn Mic RM 760
    AT-20 Antenna RM 160
    Power Adapter RM 600
