Wireless Microphone
Mipro ACT-727B
Choose Options
| Accessories | Price |
|---|---|
| ACT-72H UHF Handheld Mic | RM 2,600 each |
| ACT-72T UHF Bodypack Clip Mic | RM 2,600 each |
| Power Adapter | RM 600 each |

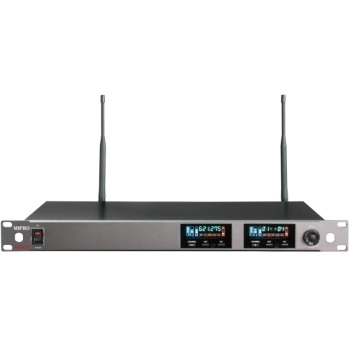

• EIA standard 1U rack-mountable metal receiver.
• UHF PLL synthesized circuit ensures high stability and low spurious emissions.
• Enhanced RF circuitry greatly reduces interference and intermodulation.
• MIPRO’s 3rd generation advanced RF and IF circuitry to improve anti-interference characteristics and increase the number of interference-free channels available.
• Auto Scan function allows quick search for an interference-free working channel from 104 preset channels under 10 groups.
• World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
• True diversity receiving for best reception quality. Dual "PiloTone & NoiseLock" circuits minimize interference.
• Industry’s only full-color VFD screen delivers a bright, clear viewing in day or night environments with automatic bright (working) and dim (standby) displays during performance.
• All controls are intuitive and easily set up via a single rotary knob.
• Industry’s only RF interference warning indicator for proper adjustments of the SQ level. Increase sensitivity to extend receiving range; decrease the sensitivity to reduce interference.
• Single channel or mixed output, switchable between three output levels for the best sound quality options.
• High dynamic range and high fidelity characteristics for transparent audio performance.
• Receiver provides bias voltage for MIPRO antenna systems to enhance reception range and signal stability.
• Superb RF reliability and transparent audio performance.
• Built-in 100 – 240V AC switching power supply ensures system safety and stability.
| Datasheet | ACT-727B Datasheet [PDF] |
|---|---|
| Frequency Range | UHF 480 – 934 MHz |
| Bandwidth | 24MHz |
| Preset Frequency | 104 preset channels Group 1 – 6: 8 compatible channels in each group Group 7 – 8: 12 compatible channels in each group Group 9 – 10: 16 compatible channels in each group |
| Receiving Mode | True diversity |
| Receiving Antenna | Rear Panel. Detachable. |
| Oscillation Mode | PLL synthesized |
| Stability | ≦ ±0.005% (-10 –+60℃)) |
| Sensitivity | 6 dBµV at S/N > 80 dB |
| S/N Ratio | > 105dB(A) |
| T.H.D. | < 0.5% @ 1kHz |
| Frequency Response | 50Hz~18kHz, with high-pass filter |
| Squelch | "PiloTone & NoiseLock" dual-squelch circuit |
| Audio Output | Output level accurately pre-adjusted to equal to the microphone capsule sensitivity. |
| Max Output Level | +16dBV / 0dBV / -6dBV |
| Output Connectors | Balanced XLR |
| Output Switch | Single channel output or mixed output |
| Power Supply | Built-in 100 – 240 AC switching power |
| Power Consumption | 15W |
| Dimensions (W × H × D) | 482 × 44 × 265 mm / 19 × 1.7 × 10.5 " |
| Net Weight | Approximate 3.0kg / 6.6lbs |
| Note | Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries. |
| Price | |
|---|---|
| ACT72H UHF Handheld Mic: | RM 2,300 |
| ACT72T UHF Bodypack Clip Mic: | RM 2,300 |
| Switching Adapter SYS1089-1512-T3: | RM 220 |
