Wireless Microphone

Mipro ACT-72

Choose Options

Price
Receiver + ACT-70H * 2 RM 9,000 each
Receiver + ACT-70T * 2 RM 9,000 each
Receiver + ACT-70H + ACT-72T RM 9,000 each
Price
Receiver + ACT-700H * 2 RM 9,000 each
Receiver + ACT-700T * 2 RM 9,000 each
Receiver + ACT-700H + ACT-700T RM 9,000 each

  • The ACT-72 receiver is EIA standard 1U rack-mountable, with metal chassis for excellent heat dissipation & RF shielding.
  • UHF PLL synthesized circuit and advanced RF and IF circuitry to improve anti-interference characteristics and increase the number of interference-free channels available.
  • 400 preset channels with 1-set of user-defined group that saves up to 16 channels.
  • World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
  • True diversity receiving for best reception quality. Dual "PiloTone & NoiseLock" circuits minimize interference.
  • Industry’s only full-color VFD screen delivers a bright, clear viewing in day or night environments with automatic bright (working) and dim (standby) displays during performance.
  • All controls are intuitive and easily set up via a single rotary knob.
  • Industry’s only RF interference warning indicator for proper adjustments of the SQ level. Increase sensitivity to extend the receiving range; decrease the sensitivity to reduce interference.
  • Single channel or mixed output, switchable between three output levels for the best sound quality options.
  • High dynamic range and high fidelity characteristics for transparent audio performance.
  • Receiver provides bias voltage for MIPRO antenna systems to enhance reception range and signal stability.
  • MIPRO RCS.Net software allows real-time computer setup, control and monitoring.
  • Built-in 100~240V AC switching power supply ensures system safety and stability.

    • Datasheet ACT-72 Datasheet [PDF]
    Channel Dual
    Chassis EIA standard 19" 1U
    VFD Display Frequency, Frequency code, RF/AF meters, Transmitter battery meter, Diversity signals, Interference warning indicator, Programmable user name, Group, Channel, Squelch meter, PC address and Lock status
    Frequency Range UHF 482~698MHz（US），UHF 480~874MHz（EU） (country dependent)
    Bandwidth 72MHz
    Preset Frequencies 400 preset channels
    Group 01~10: 16 compatible channels in each group
    Group 11~15: 48 compatible channels in each group
    Group 16: 16 channels can be saved & recalled (user-defined)
    Receiving Mode True diversity
    Oscillation Mode PLL Synthesized. Frequency stability≦±0.005% (-10~+60℃)
    Sensitivity 6dBμV, at S/N>80dB
    S/N Ratio >108dB(A)
    T.H.D. <0.5% @ 1kHz
    Frequency Response 50Hz~18kHz, with high-pass filter
    Squelch “PiloTone & NoiseLock” dual-squelch circuits. Rotary control for squelch adjustment.
    Audio Output Adjustment Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.
    Maximum Output Level Balanced: +16dBV / 0dBV / -6dB; Unbalanced: +10dBV / 0dBV / -6dB
    Output Connectors Balanced XLR
    Output Switch Single channel output or mixed output
    Operation Manual or PC remote control via optional software
    Power Supply Built-in 100~240V AC switching power supply
    Power Consumption 15W
    Dimensions 482 × 44 × 265 mm / 19 × 1.7 × 10.5 "
    Weight Approx. 3.0 kg / 6.6 lbs
    Note Refer to actual product in the event of product discrepancy.
    Frequency range and maximum deviation comply with the regulations of different countries.
    Price

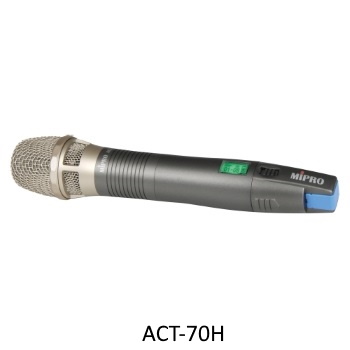

    ACT-70H UHF Handheld Mic RM 2,600

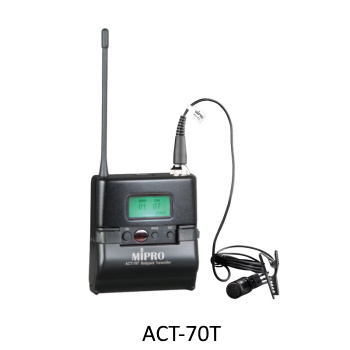

    ACT-70T UHF Bodypack Clip Mic RM 2,600

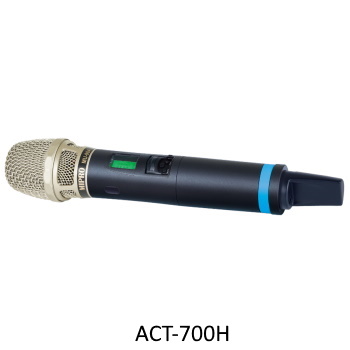

    ACT-700H UHF Handheld Mic RM 3,600

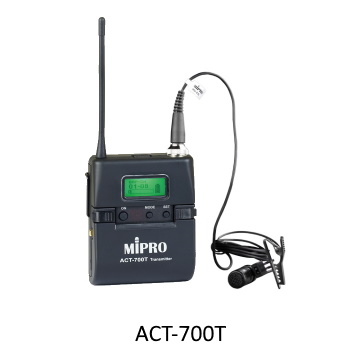

    ACT-700T UHF Bodypack Clip Mic RM 3,600
    MU-53HN-XLR Headworn Mic RM 760
    AT-20 Antenna RM 160
    Power Adapter RM 600
